TP800S Series Tool Bar For Interseeding into corn, Side Dressing,  Strip till, Seed Drilling etc.

Pictured below as an Inter seeder/Side Dresser,  you will notice it can be unhooked quickly and still be a 3 point hitch tool bar.  The rear cart simply hooks on with the same idea.  A rear 3 point hitch system giving you flexibility.    (see far below for more pictures.)

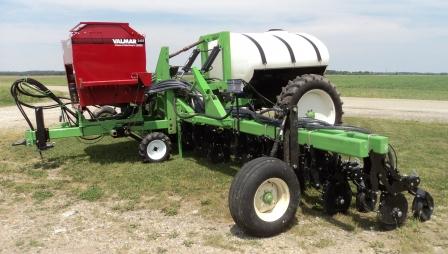

Interseeder

  • Double frame for strength and multiple tooling options.

  • Models available from 10 to 40 feet wide.

  • Lift assist available for use on 3 point hitch mounted tool bar.

  • Hydraulic weight transfer to the wings.

  • Rear cart with hitch tow option to make it a pull type.

Many Configurations

The TP800S Series Tool Bar can be configured in different ways to accomplish different tasks.  It comes standard with a front 3 point hitch system and a rear 3 point hitch system to allow you to hook up both the front and the rear of the machine.  Whether it is a simple hitch for towing a wagon to a rear lift assist, all can be accomplished by simply hooking up via the rear 3 point hitch system.

Uses

The TP800S Series Tool Bar has been used to side dress corn, inter seed cover crops in standing corn, strip till and even plant small grains and soybeans.  Our rear tank mount can hold either a dry tank or a liquid tank.  This tank is a great way to transfer weight to the Tool Bar.  Our front hitch system can also hold a dry Valmar Tank.  With these options, one can accomplish multiple tasks in one pass through the field.

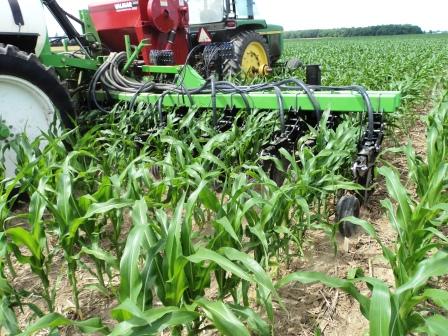

interseeding tool bar

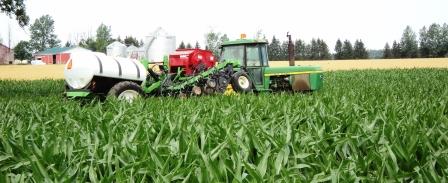

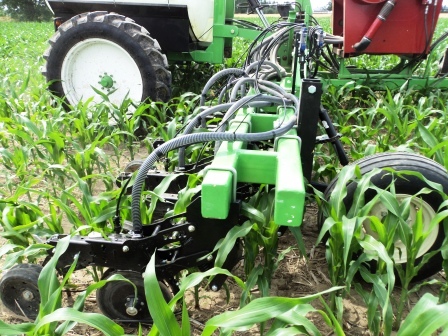

interseeding tool bartool bar endview

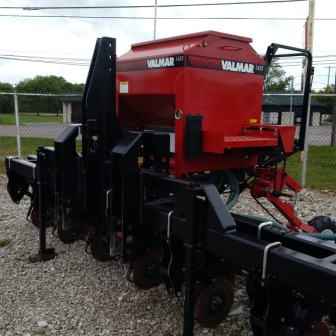

 3 point interseeder

Shown above as 3 point hitch with rear mounted Valmar 1655 and below as a 2 point with lift assist bare bar with options to mount whatever you want.

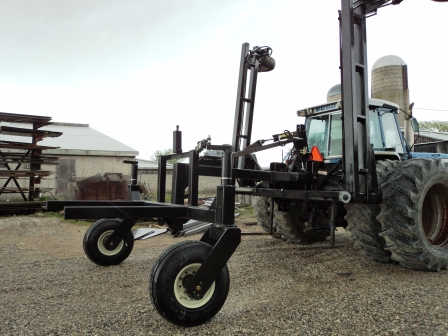

2 point hitch tool bar with lift assist

For more info please send an email to rick@hflfabricating.com or call toll free  1-866-592-3806.
