SEED DRILL -   Video     -   Parts

All of HFL's planting equipment has been designed to give you an even crop stand each and every year with very low maintenance. We offer 3 standard frames, however,  if a frame doesn't suit your needs we do offer custom solutions.  All 3 frames are listed below along with our TK7600 Series Row unit.  For more info please contact me at rick@hflfabricating.com or call 1-866-592-3806 or click here for a quote.

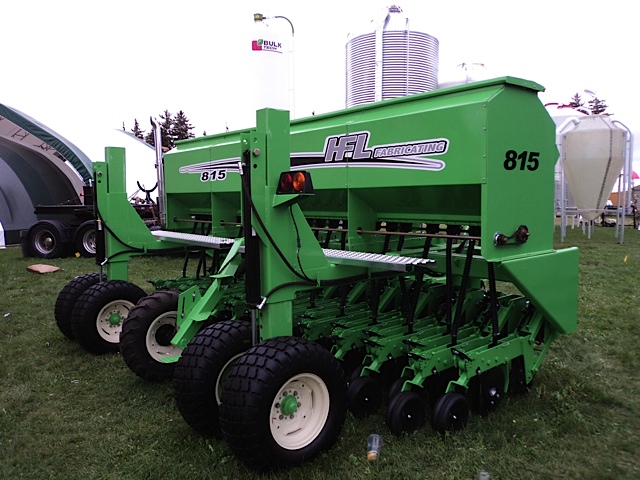

800 Series No Till Seed Drill

With our NEW Bigger Seed Bin!!!

800 Series No Till Seed Drill

  • Seed capacity of 5.5 bushels per foot.
  • Option to plant in 7.5" and 15" or 10" and 20" row widths with 8" stagger.
  • Optional "Twist It" hitch for fast transition from field to road and back.   11' transport width.
  • Models available from 10' to 30'.

The 800 Series Seed Drill is designed simple and durable for the farmer who wants to service less and plant more.   Combined with the TK7600 series row unit, this seed drill will do a nice job planting in spring or fall conditions.  Call 1-866-592-3806 to speak with a customer service representative or click here for a quote.

Click here for a seeding rate chart.

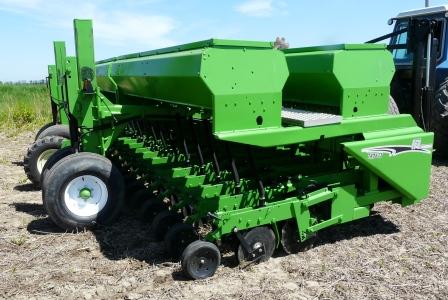

TC3600 Series No Till Seed Drill

This frame is designed to provide all the benefits of an air cart without the extra cost or complicated circuitry.

TC3600 Series Seed Drill from HFL

  • Seed capacity of up to 145 bushels. (similar to an air cart)
  • 36" row stagger makes for excellent trash flow.
  • Option to mount precision seed meters on openers allowing you to plant in 7.5", 15" or 30" rows using the same planter for multiple crops.
  • Models available from 10' to 30'.
  • Optional "Twist it" Hitch for fast transition from field to road and back.  13'-4" transport width.

The TC3600 Series Seed Drill is designed to plant a large area per day with multiple row width options, into a wide range of soil conditions.  This frame is designed to provide all the benefits of an air cart without the extra cost or complicated circuitry.  Call 1-866-592-3806 to speak with a customer service representative or click here for a quote.

Click here for a seeding rate chart.

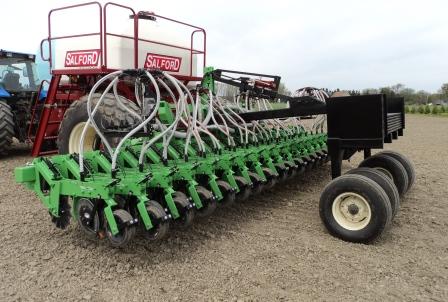

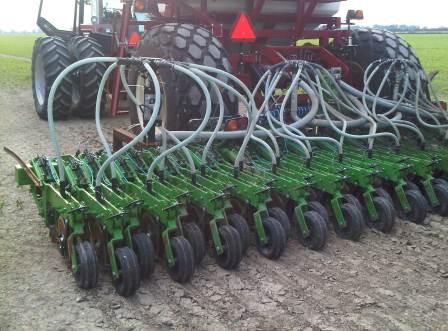

TP800 Series Air Seeders

 with our NEW Weight Manager 6000.

TP800 Series Air Seeder Cart with Weight Manager 6000

  • 8" row stagger.
  • Three point hitch hook up.
  • Wings fold for 13' travel width.
  • Models available from 10' to 40'.

The TP800 Series Air Seeder is designed to plant a large area per day in tandem with an air seeding cart, into a wide range of soil conditions.

The Weight Manager 6000 is designed to add weight to a 3 point hitch air seeder.   It will hold up to 6000 lbs of extra weight.  That weight is never carried by the air cart.   Call 1-866-592-3806 to speak with a customer service representative or click here for a quote.

Click here for a seeding rate chart.

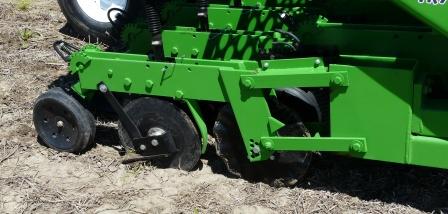

TK7600 Series Row Unit

This row unit is the reason we started manufacturing frames.  This row unit incorporates all that is important when laying down seed.  The TK7600 will get you seed to soil contact quickly every time which is essential in obtaining an excellent crop stand.  Call 1-866-592-3806 to speak with a customer service representative or click here for a quote.

TK7600 series row unit

  • The position of the seed tube allows the seed to drop to the bottom of the trench.
  • Low horsepower requirement.
  • Easily adjustable large coil spring allows for a heavy/more even down pressure of a long stroke.
  • 250 to 750 lbs down pressure. (9 settings)
  • 13" parallel linkage to allow the unit a stroke of over 13 inches.
  • Unit mount coulter for row specific coulter depth control.
  • Precise, easily adjustable depth control.
  • Row units manufactured out of heavy plate for weight and durability.
  • Ability to mount various planting meters on row units for precise seed spacing.

The TK7600 Series Row Unit is designed to give you an even crop stand each and every year with very low maintenance.  Call 1-866-592-3806 to speak with a customer service representative or click here for a quote.

Click here for a seeding rate chart.

For more info please contact me at 1-866-592-3806 or rick@hflfabricating.com  or click here for a quote.
